The unique SMOOTH BORE sealing system
VIP-WECO REMOTE is a non-walkable pipe repair system designed for trenchless rehabilitation of small to medium diameter pipelines from DN150 to DN800. The smooth bore sealing design allows internal installation without pipe entry, creating a water- and air-tight mechanical seal while maintaining flow efficiency.
This trenchless internal pipe repair system is particularly suited to confined access pipelines where excavation or pipe entry is not possible.
The EPDM rubber outer has been designed to create a water/air tight seal once the stainless steel sleeve has been expanded using the unique locking mechanism, which leaves a smooth internal bore, reducing the risk of debris catching and blocking the seal. Installation can be completed within minutes as opposed to hours, with no need to excavate and replace the pipe, or the need to enter the pipe line.
Easy Installation of the VIP-WECO REMOTE Pipe Repair system:
- No need for costly excavations
- Ideal for non walkable repairs in pipes from DN150-800mm
- Automatic locking of the sleeve allows for quick and precise installation
- Installation kits and accessories available.
Technical Specifications
Rubber Quality
EPDM for drinking water
EPDM for industrial water, waste water
(EPDM – ethylene-propylene-diene rubber)
Diameter Ranges
- DN150 to DN800
Pressure Ranges
- up to 16 bar internal pipe pressure
Sleeve Dimensions
- Total Width – 280mm | 360mm | 480mm
- Web Width – 140mm | 240mm | 350mm
- Sleeve Thickness – 6mm for all width options above
Pipe Materials
- Concrete
- Steel
- Ductile Iron
- Clay
- Plastic
- GRP
Clamping Bands / Lining Material
- Made of stainless steel 1.4404
Approvals
- DIBt Approved
Material Tests
Material approvals and certificates are available upon request.

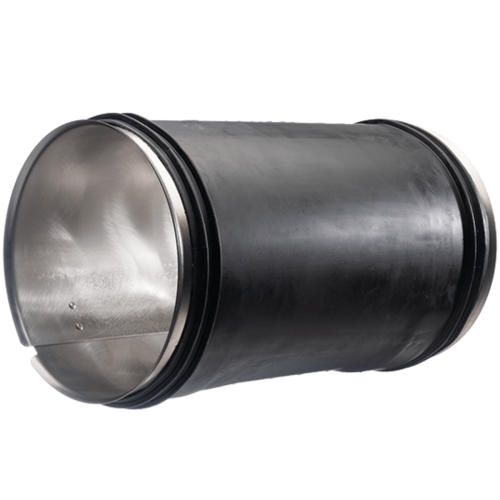

Circum MINI
- Internal REMOTE installation rehabilitation sleeve for small to medium diameter.
- Smooth Internal Bore when fitted, reducing the risk of debris clogging up the pipe.
- Compression Seal
- Pipe Diameter - DN150-DN800
- Applications:
Circum LEM
- Internal REMOTE installation rehabilitation sleeve for small to medium diameter.
- Smooth Internal Bore when fitted, reducing the risk of debris clogging up the pipe.
- Compression Liner End Seal
- Pipe Diameter - DN150-DN800
- Applications:

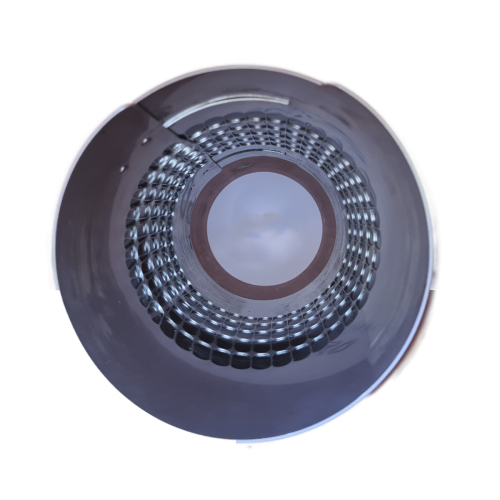

Circum Flex
- Internal REMOTE installation Flexible Repair sleeve for small to medium diameter.
- Flexible Internal Repair Seal
- Pipe Diameter - DN150-DN600
- Applications:
Key features of the VIP-WECO REMOTE Pipe Repair system:
- Creates a permanent sealing solution
- Diameters available from 150mm to 800mm
- Suitable for industrial water, potable water, waste water, fuel & gas
- Multiple sleeves can be used to repair larger lengths of pipe
- Unique locking mechanism sits between the rubber and inner sleeve leaving no protruding obstacles to restrict flow
- Typical life expectancy of 100+ years.
- Can also be used for end liner sealing
Advantages of using the VIP-WECO REMOTE Pipe Repair system:
- Permanent sealing purely based on the principles of mechanics
- Effective and sustainable repairs
- Fast and simple installation saves time
- Installation with no environmentally harmful chemicals
- The stainless steel sleeve with external lock, eliminates any passing impediments becoming lodged
- Can be used with almost all pipe materials (concrete, steel, ductile iron, clay, plastic and GRP)
